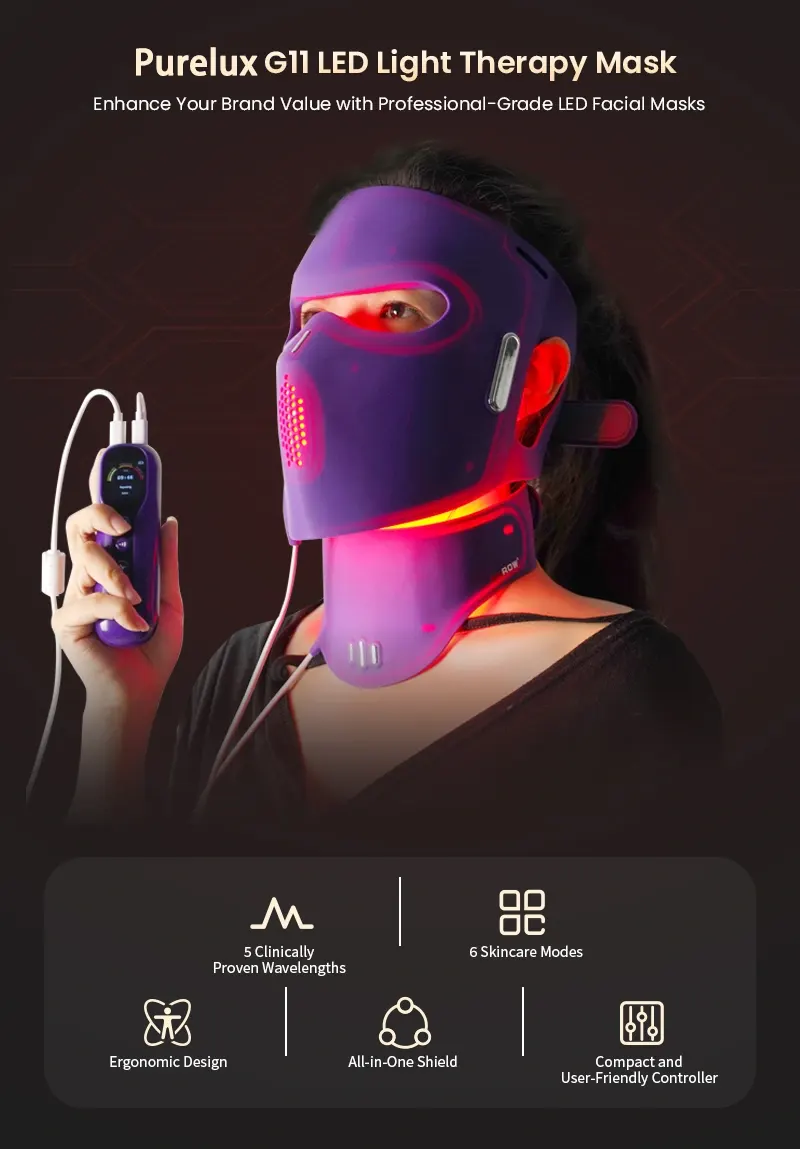

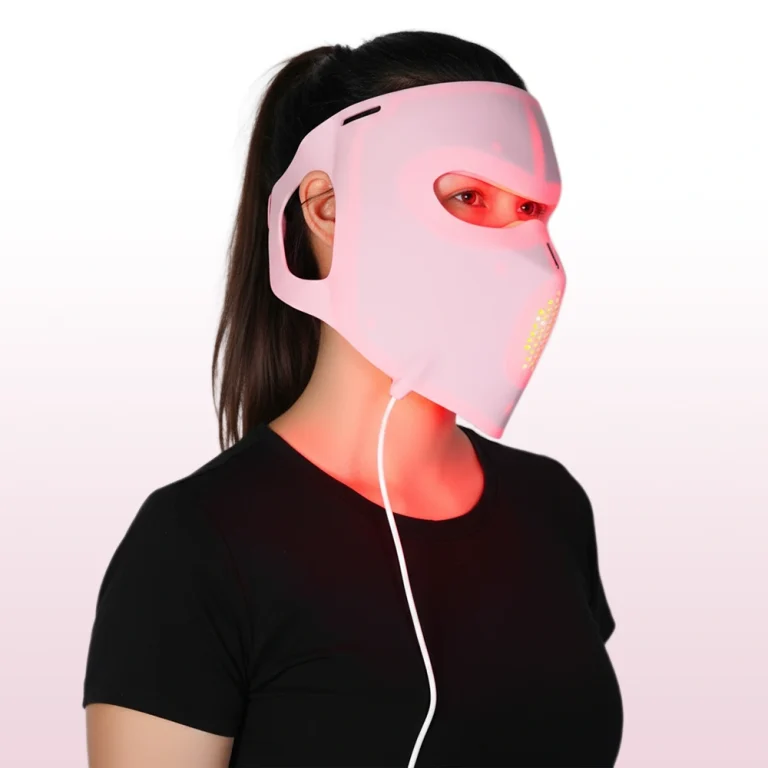

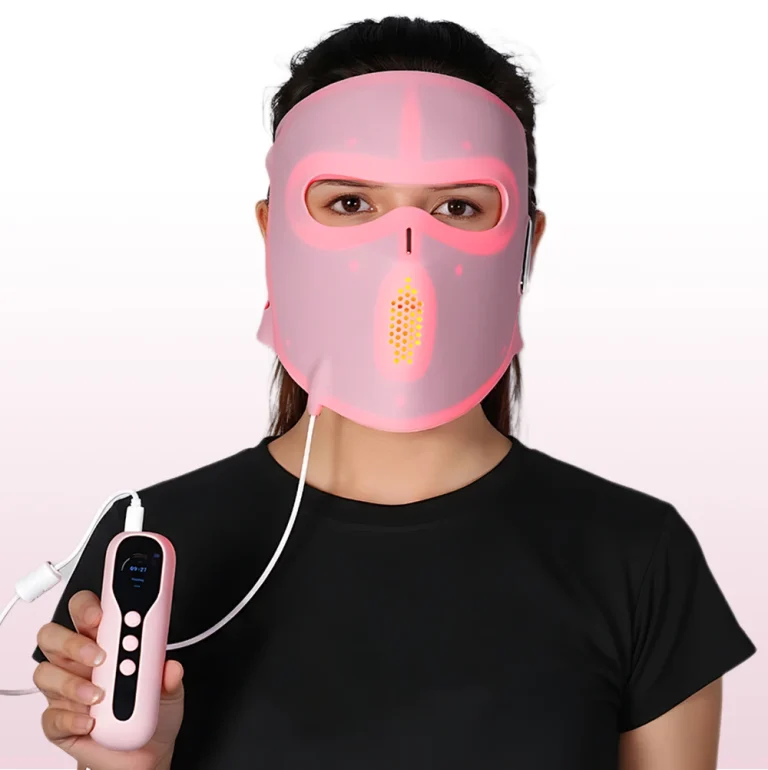

G11 Red Light Therapy Silicone Mask – FDA 510k Manufacturer & OEM/ODM Supplier
1. Core Design & Experience
• Upgraded Design: Features a new aesthetic with enhanced ergonomics for superior comfort and a modern look.
• Intuitive Interface: Integrated LED screen clearly displays real-time operation mode and status.
2. Advanced Functionality & Control
• 6 Treatment Modes & 3 Intensity Levels: Offers flexible protocols for various therapy needs.
• Pulse Function Option: Can be activated in any mode for advanced treatment applications.
• Portable Controller with Hook: Designed for convenience and easy storage.

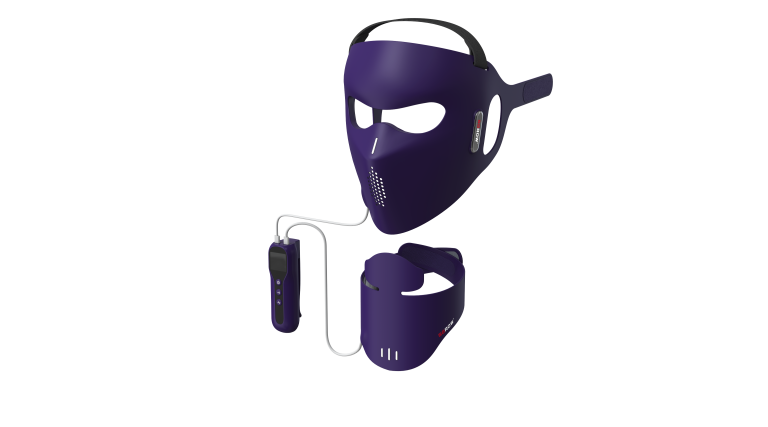

3. Product Models & Value Proposition
• Targeted Application Models:
– G11: For facial treatments.
– G11N: For neck treatments.

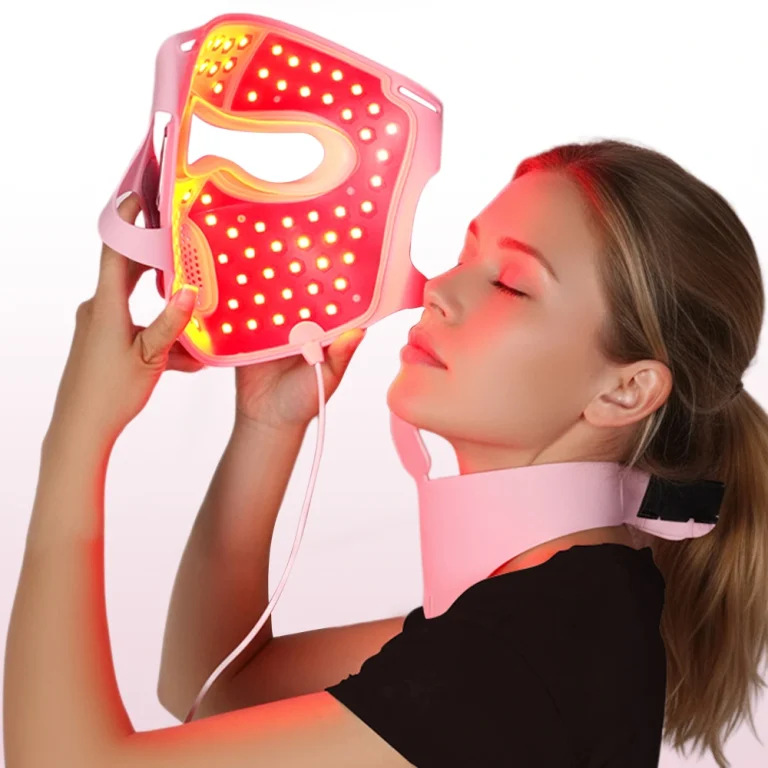

– G11P: For combined face and neck therapy.
• Optimized Performance: Engineered for reliability and effective treatment outcomes.
• High Cost-Effectiveness: Provides exceptional value for B2B partners and end-users.
G11 Wearable Silicone Mask – Technical Specification Sheet
| Product Name | Wearable Silicone Mask |
|---|---|
| Product Model | G11 (Face Only), G11N (Neck Only), G11P (Face + Neck) |
| Applicable Areas | Facial area, Neck area |
| Implementation Standards | GB 4706.15-2008 / GB4706.1-2005 |
| Appearance Design | Proprietary ID Design |
| Materials |
• ABS + PC (Housing)
• Solid Silicone (Mask material)
• PCBA and other electronic components
|
| Display Screen | TFT Screen |
|---|---|
| Rated Power | Face Mask: 6W Neck Piece: 4W |
| Battery Capacity | 5000mAh 21700 3.7V | Maximum current, 5-7 uses per charge |
| Dimensions |
Face Mask: 345 Ă— 225 Ă— 181 mm
Neck Piece: 492 Ă— 149 Ă— 6 mm
Controller: 126 Ă— 40 Ă— 45 mm
|
| LED Model | 5050, Four-core LEDs |
|---|---|
| Wavelength Ratio | 415:590:630:850/1072 = 1:1:1:1 |

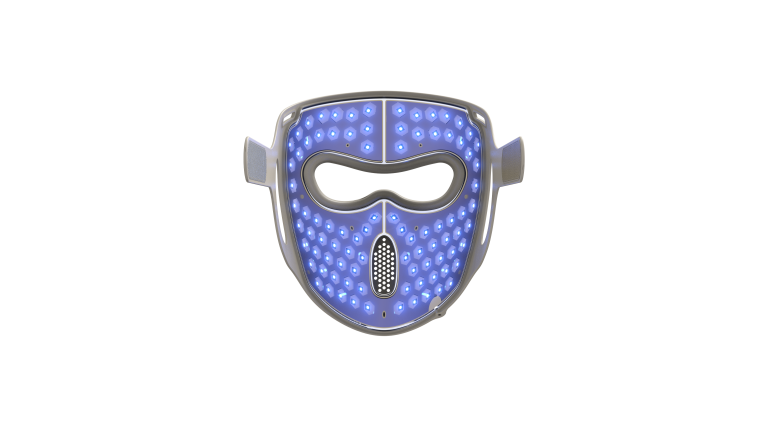

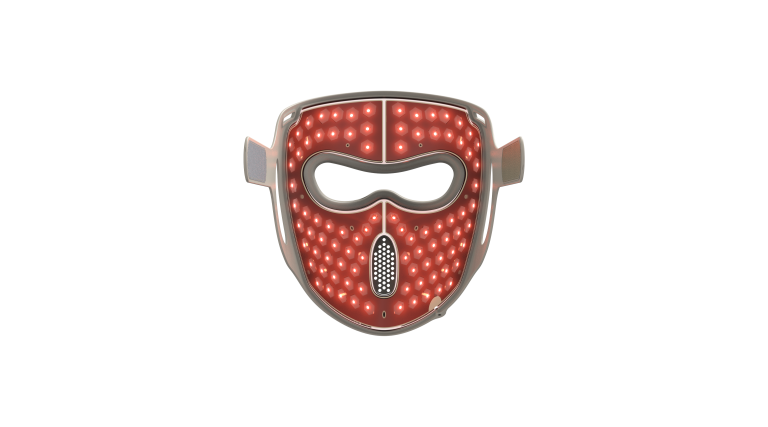

| LED Quantity |
Face Mask: 90 pcs (including 12 pcs of 1072nm)
Neck Piece: 57 pcs
|
| Wavelength Bands |
415nm (Blue Light)
590nm (Yellow Light)
630nm (Red Light)
850nm (Near Infrared)
1072nm (Infrared)
|
| Irradiance | 30-40 mW/cm² |

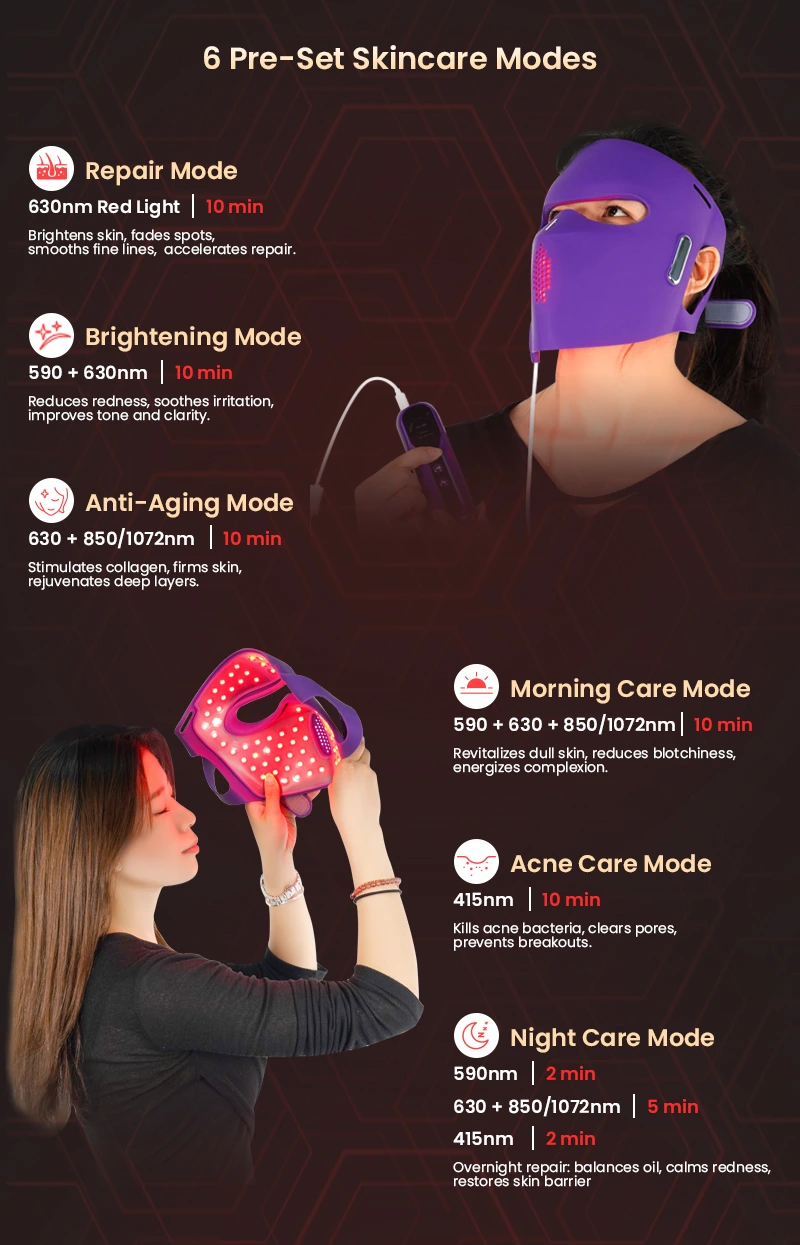

| Treatment Modes (6 Total) |
|
|---|---|
| Pulse Function | Each mode can add pulse function at 10Hz |
| Brightness Adjustment |
Three-level brightness control:
Level 1: 50%
Level 2: 75%
Level 3: 100%
|
| Button Functions | Controller with three buttons: Power, Brightness, Pulse |
| Interface Type | USB-C Ă— 2 |

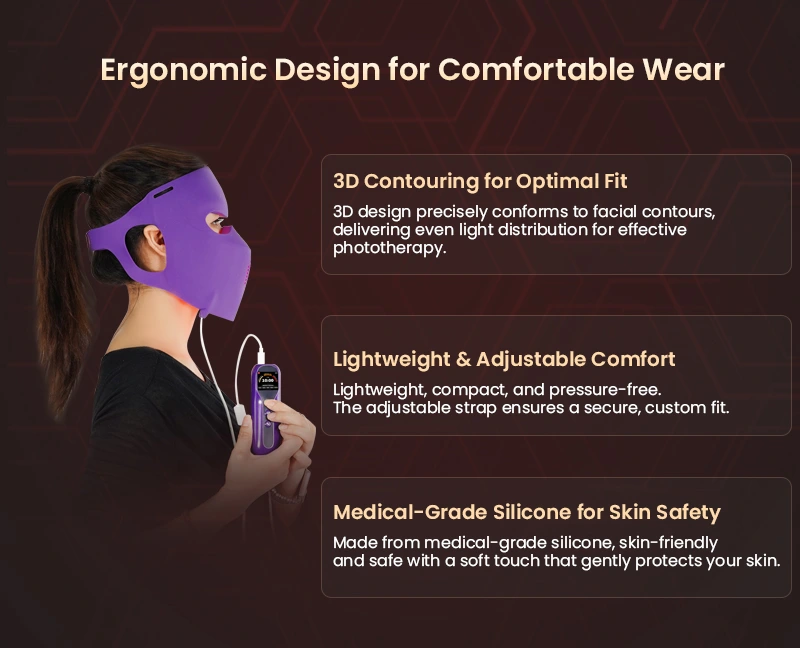

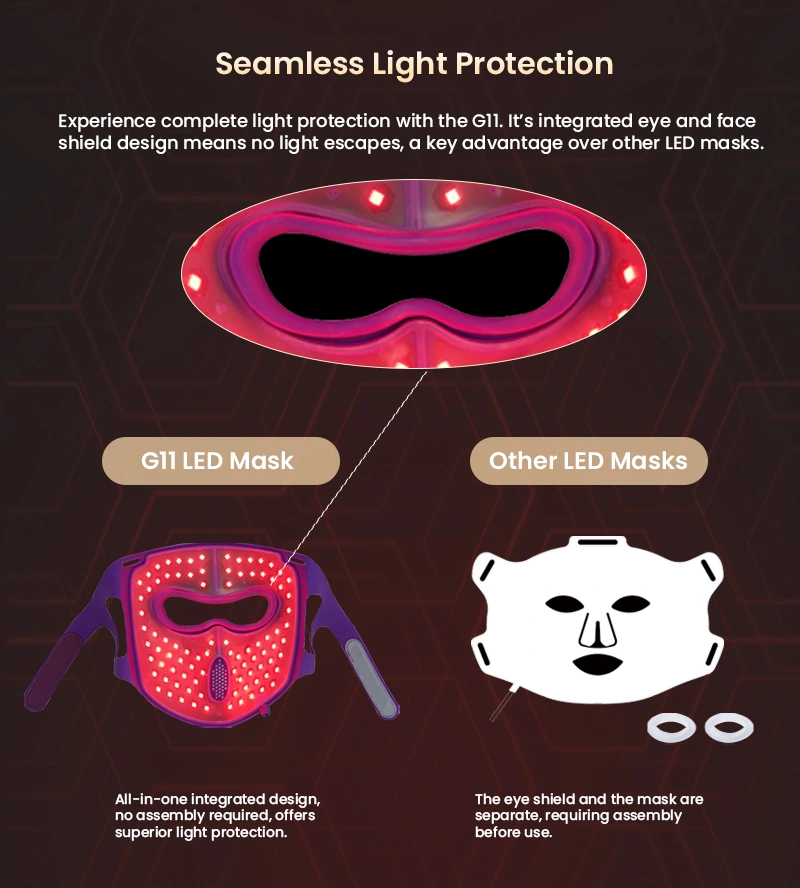

Design & Comfort
New appearance design, more attractive and comfortable fit
Display Screen
LED screen displays working status and mode information
Multiple Modes
6 specialized care modes with three-level brightness adjustment

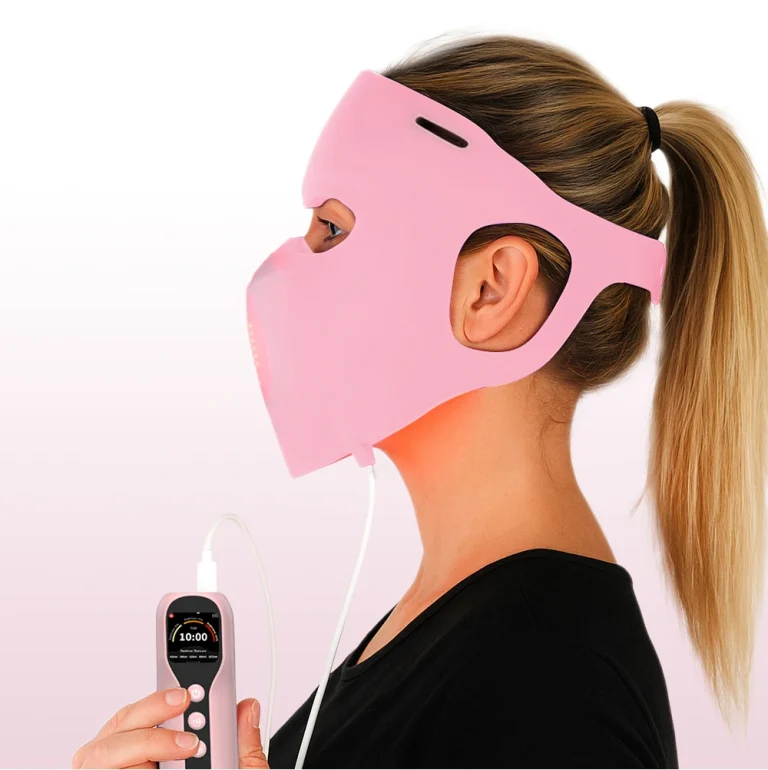

Convenient Design
Controller with hook for easy attachment and portability
Pulse Function
Each mode can be enhanced with pulse function (10Hz)
Modular Options
Three variants: Face only, Neck only, Face + Neck combo
Performance Optimization
Enhanced performance with high cost-effectiveness
Before & After : 5 Youthful Metrics in 1 Week
Clinically Proven FDA & SGS Certified
What Makes lt So Powerful ?
6x stronger than LED, JOVS uses advanced laser technology with a precise 18–20° angle (1/7th the width of traditional LEDs). The concentrated light reduces energy loss, penetrates deeper into the skin, and delivers safe, non-heating treatments ideal for sensitive skin, highly efficient.
Deep Anti-Aging Power
Industry-first 1064nm Long-Wave NIR, paired with 660nm red light and three additional wavelengths, for deeper skin penetration that targets aging from the surface to the deepest layers.
Precision Light Matrix
Engineered laser placement targets forehead, eyes, nasolabial folds, and cheeks with the ideal wavelength for each zone, delivering full-face brightness and visible results.
660nm + 660nm
Brightens and evens out dull, tired skin.
660nm + 850nm
Reduces forehead lines for a refreshed, relaxed appearance.
660nm + 940nm
Fades sun spots, age spots, and redness for an even, healthy skin tone.
660nm + 1064nm
Smooths smile lines and eye wrinkles, enhancing skin firmness.
How to use
We recommend three to five 10-minute treatments per week for four to six weeks, followed by maintenance as desired.
- Charge your controller & then connect it to the device
- Prepare your skin
- Secure the device to your head using the velcro straps
- Start the 10-minute treatment
- Remove the mask and apply moisturizer to the skin
- Gently wipe down the mask
FAQ
Q1:Are you a manufacturer or a trading company?
A: We are a manufacturer, providing OEM & ODM service. Our design department, engineering department, sales department and production merchandiser to serve you together. Welcome to contact us anytime.
Q2:What payment way I can use to proceed the order?
A: Usually we make transaction via alibaba trade assurance, after we set up an order, you can pay with credit card, visa, T/T transfer. Or pay offline by western union or Paypal.
Q3. What is the lead time & arrival?
A: Samples need 3-5working days, for quantity order, need about 15-20 working days (depend on detailed quantity of the order). We use Express (DHL, UPS, FedEx Or TNT).It usually takes 3-7 days to arrive except Sea transportation.
Q4. Do you have MOQ (Minimum Order Quantity) required for any items you have?
A: There is no MOQ for our products, the more quantity, the cheaper price and freight cost would be!
Q5. What medical certifications do you have?
A: FDA 510(k), TGA, MDL, UL IEC 60601-1, ETL, SAA, CE, ROHS, FCC, ISO13485, and MDSAP/Customized
Q6. What is the difference between red and near infrared light therapy?
A: Red and near infrared light therapy are exactly the same except for two differences: Red light is visible and near infrared
Q7. How long does it take for red light therapy to work?
A: It is not an immediate miracle transformation that will occur overnight, but it will provide you with ongoing improvements that you will begin to see in anywhere from 24 hours to 2 months, depending on the condition, its severity, and how regularly the light is used. For most conditions, daily use for at least two weeks is recommended, followed by a once- or twice- weekly maintenance regimen.
Q8. Do I need to continue to use the light as much when I start seeing results?
A: Yes. Just because you’re seeing results, it doesn’t mean that your skin cells are finished doing their jobs. It’s just that the
results of their efforts are starting to become something you can see and/or feel. Keep up the treatments until you reach your goal level of results. Then you can start a weekly maintenance schedule.
